DaynaFILE SCSI Floppy Disk Drive (5.25″: 360k, 1.2M, 3.5″: 720k, 1.44M)

Last updated on March 13, 2023

In the late 90s I picked up a DaynaFile, a SCSI attached floppy drive, with a 360k floppy that someone had thrown out at my work. It sat neglected in a drawer for years until I finally got a power supply to get it working again. Looking around the internet I was able to find a copy of the 2.2 enabler, the 4.1 enabler, a copy of the 5th edition (1989) of the manual, and a brochure (1987), but limited technical information. As usual, I’m using my blog to document what I’ve found and pieced it together so I don’t forget, and to hopefully help others.

1. What is a DaynaFile?
2. History
3. Supported drives and settings
4. DaynaFile settings
5. DaynaFile power supply
6. Using your DaynaFile
7. Advertisements and articles

What is a DaynaFile

The DaynaFile is an external SCSI enclosure that lets you connect IBM PC 5.25″ 360k, 5.25″ 1.2MB, 3.5″ 720k, and 3.5″ 1.44MB floppy drives to your SCSI enabled Macintosh, NeXT system, and possibly SCSI enabled PC systems running BSD (unconfirmed). I have only tested mine by connecting it to my Macintosh systems.

History

1987: Dayna refines the technology behind MacCharlie into a product called DaynaFILE, an external disk drive that allows Macintosh computers to exchange files with IBM PC- compatibles on floppy disk. DaynaFILE quickly becomes a successful product and remains the company’s mainstay until the product lines are extended into the LAN market three years later.

Dayna’s About page cached in November 1996 by the WayBack Machine

According to an article I found online by Inc Magazine from July 1998, Dayna Communications first developed their MacCharlie in 1985 (an addon for the Mac Plus that would let you run dos programs and load files from a 360k floppy), when that didn’t sell as expected (leading the company to almost go bankrupt), Dayna re-used some of the technology to release the FT 100 in 1986, a product that reused MacCharlie’s case but reduced it’s functionality to just the 360k floppy drive with a program to move files to and from the floppy as a way to share files between the IBM PC and the Macintosh. The FT 100 was then quickly replaced by the DaynaFILE in mid-1987 which according to the Inc Magazine article sold well and helped Dayna Communications become profitable again. In 1991 the DyanaFile II was released as a single drive device as a cost reduced design according to a discussion I had through LinkedIn with Lynn Alley Dayna’s CTO at the time. In 1997 Dayna Communications was acquired by Intel with Intel focusing on Dayna’s networking hardware and ending support for the DaynaFile with ROM 4.1 and Enabler 4.1. In 1988 Dayna’s website was updated to state that their product line had been discontinued, and there is no longer any mention of the DaynaFile as a product.

1988: Dayna does indeed look like a business that is just getting under way, and, in one sense, it is. Its product, DaynaFile, came out only a year ago. The device, which allows users to share data between Macs and IBM personal computers, has won glowing reviews in trade publications and shared Product of the Year honors with the Macintosh II at MacWorld. Monthly sales have been brisk, passing the $92,000 mark in March, far ahead of schedule.

Article about how Dayna Communications was almost bankrupted by the MacCharlie: July 1988 Inc. magazine

1991: Dayna also introduced the DAYNAFILE II. It has been repackaged in a smaller case, and the external power supply is now smaller. The original DaynaFILE was available in eight single and dual-drive configurations, but the new version has been consolidated into three single-drive models. Two new 5.25-inch drives read and write 360k and 1.2MB disk, and the 1.2MB model can also read and write 360k disks. The 3.5-inch drive reads and writes 1.4MB disks as well as 1.4MB Macintosh disks. This makes it a perfect external SuperDrive for older Macintoshes. Dayna is also bundling DOS Mounter 2.0 with all models of the DaynaFILE II.

1991-04 Computer Monthly page 136

The original DaynaFile had two bays and a larger external power supply.  DaynaFile II was really a cost -and space-reducing measure with just a single drive bay and smaller supply.

Lynn Alley Dayna’s CTO, as part of a discussion through linkedIn when I asked what was different about the DaynaFile II

Who I’ve contacted

To gather information for this post I reached out to the following employees of Dayna Communications:

• Connie Worthingtin (Sr. Software Engineer 1992-1996): suggested I reach out to Lynn Alley
• Doug Greer (Tech Support Rep. 1990-1994): had no documentation
• Nicole Toomey Davis (Product Manager. 1991 to 1993): had no docuementation
• Brett Elsmore (Software Test Engineer 1997): had no documentation (before his time at the company)
• Brian Clark (Educational Sales Manager 1992 to 1997): no response
• Dave Olsen
• John Enslow
• Edgar Jerez
• Mark Middleton
• Wes Peters
• Charles H Bytheway
• Paul B. Vincent.
• Mark Kohagen

Supported Floppy Drives

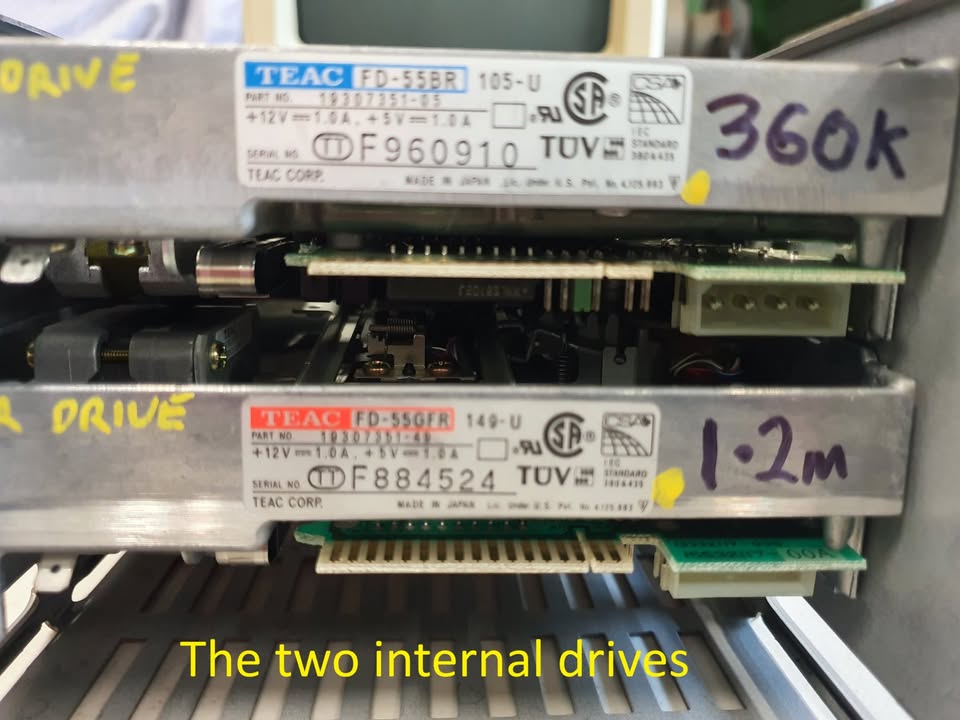

I now have two DaynaFile enclosures, one with a 360KB FD-55BR-500-U drive, and the second with a 1.2MB FD-55GFR-149-U drive, I plan to combine the drives in a single enclosure….. if I can sort out the jumper settings for each drive.
