68k Accelerators: NewLife Computer Corporation

Published January 17, 2023

Last updated on March 24, 2024

The information and files I have collected so far about NewLife Computer Corporation, and their accelerators and addons for the 128k, 512k, Plus, SE, and Classic: UltraMac, NewLife 1, 2, 25, 25SE, 33SE, SE video, 25CL; NewLife 16 Accelerator! Plus, SE, Classic.

Summary of Accelerators

NameCPU (FPU)MemoryVideoComments
UltraMacN/A1 to 4MBNoEarly product used to increase 128k, 512k, 512ke Macintosh systems to 1MB and later up to 4MB of RAM
NewLife 168HC000 (n/a)1 to 4MBNoClip on board that adds a new slightly faster CPU, memory and a SCSI Port to 128k, 512k, and 512ke Macintosh systems
NewLife 268HC000 (n/a)1 to 4MBYes (mono)Same as the NewLife 1 but adds an external monochrome video connection
NewLife 2568030 25Mhz (opt)1 to 4MBOpt (mono)Clip on board that adds a faster CPU, faster memory, an optional DB9 TTL video connector, and an optional SCSI port to 128k, 512k, 512ke, and Plus Macintosh systems
NewLife 25SE68030 25Mhz (opt)1 to 4/16MBOpt (mono)SE PDS board that adds a faster CPU, faster memory, and optional DB9 TTL video connector. Initial boards supported 1 to 4MB, later revisions supported 1 to 16MB.
NewLife 33SE68030 33Mhz (inc)1 to 16MBOpt (mono)SE PDS board that adds a faster CPU with a 256KB 25ns static shadow RAM cache, faster memory, and optional DB9 TTL video connector. More than 4MB requires VIRTUAL 3.0. Should work on the SE, SE FDHD, and the SE/30
NewLife SE VideoPlugs directly in to a standard SE bus connector, and is designed to work with the NewLife 25SE and 33SE system upgrades
NewLife 25CL68030 25Mhz (opt)1 to 16MBOpt (mono)Clip on board that adds a faster CPU, faster memory, and optional DB9 TTL video connector
NewLife Accelerator! CL68030 16/20Mhz (opt)1 to 16MBOpt (mono)Later 16MHz and 20Mhz cost reduced versions of the NewLife 25CL
NewLife Accelerator! Plus68030 16Mhz (opt)1 to 16MBOpt (mono)Later 16MHz cost reduced version of the NewLife 25. Will try to confirm if a 20MHz version existed.
NewLife Accelerator SE68030 16/20Mhz (opt)1 to 16MBOpt (mono)Later 16MHz and 20Mhz cost reduced versions of the NewLife 25SE
Summary of the information found in this document

Background

In 2019 I picked up two Macintosh Plus machines with NewLife Quik30 / Novy Quik30Plus accelerators installed and started searching for information about them. Unfortunately I quickly found out that they either never had a website, or their website was gone before 1996 when the wayback machine started backup up the web. I did find a copy of the website for their parent company Newbridge Networks Corporation, but the product catalogue I found there did not contain any information on NewLife or the NewLife accelerators.

Luckily thanks to the internet archive I was able to find some information in older magazines and reference books, and as I searched I started putting together a list of the the various accelerators I came across.

But, I was hoping for more, there was still a lot cards with no manuals, or missing enablers. So, in 2022 I decided to start trying to reach out to past employees through LinkedIn.

NewLife is my first major success with that approach, I was able to get in contact with Lincoln Henthorn the general manager and later the company president, and he provided me with boxes of advertisements, manuals, and diskettes to use as source material for this post.

Company history 1983 to 1995

Poster from 1988 by Noble Graphics, Inc.

From what I’ve found online and what Lincoln has told me, the development of the NewLife accelerators involved several companies and licensing agreements. The following is what I’ve been able to piece together.

In 1983 John Roberts founded Calmos Systems, Inc. located at 20 Edgewater Street, Kanata Ontario a manufacturer of high quality semiconductor components for the Wireless, Video, and High Speed Digital Data Transmission Industry.

In 1985 John Roberts decided to step aside and Adam Chowaniec (previously the vice-precedent at Commodore International) took over (source: Ottawa Citizen Article, Figure 1).

UltraMac Logo

In 1986 Lincoln Henthorn (my contact for all of this through LinkedIn), president of LSJ Microtechnology Corp. located in Nepean, created a new division called UltraMac Conversions (or Ultra Mac), which designed, manufactured, and provided peripherals for Apple’s Macintosh Computers. (source: 1989 Ottawa Citizen Article referring to three-year-old UltraMac, Figure 5., and Figure 2. an advertisement from November 21 1987 in the Ottawa Citizen)

“LSJ did the original UltraMac memory upgrades for the 128K Mac. I actually reworked the motherboards to remove the memory chips and add 512K chips and a daughter card to go to 1 Meg.”

LinkedIn discussion with Lincoln Henthorn

In 1988 Calmos Systems Inc. purchased the product line from Siltronics (source: Ottawa Citizen Article, Figure 3), and created a new subsidiary called Calmos Semiconductor to focus on production, while the parent, Calmos Systems Inc., would focus on research and development. (source: Ottawa Citizen Article, Figure 4)

In 1989 Calmos System’s purchased UltraMac Conversions from LSJ Microtechnology Corp. and renamed UltraMac Conversion to Calmos Data (source: Ottawa Citizen Article, Figure 5)

“The Mac upgrades where developed at Calmos as a commercial venture. Calmos was a contract IC developer who purchased select assets from the demise of Siltronics. I ran the data products division at Calmos.”

LinkedIn discussion with Lincoln Henthorn
Calmos head steps aside for imported replacement
Figure 1.
UltraMac Conversions
Figure 2.
Calmos takes over profitable product line from defunct Siltronics Inc.
Figure 3.
Figure 4.
Figure 5.
Figure 6.

In early to mid 1989, Calmos Systems Inc (and Data and Semiconductor) was acquired by Newbridge Networks (source: Ottawa Citizen Article, Figure 6, and wikipedia), and was renamed to Newbridge Networks Corp:

Newbridge Networks, Inc. has acquired Calmos Systems Inc. of Ontario. The Canadian company, renamed Newbridge Microsystems, will operate as a separate division, designing and marketing semiconductor components and subsystems for internationally distribute data communications and processing products.

Computerworld 1989-06-12 Vol 23 Iss 24

In September of 1989 Newbridge Microsystems announced their new product line under the brand name Ultramax:

Newbridge Microsystems of Ottawa, has unveiled their new line of enhancement products for the Macintosh. The company says the Ultramax line includes a range of products such as memory upgrades and compact interior/exterior hard disk products

Enhancements for the Mac Family: Computer Data 1989-09 Volume 14 Issue 9

In January 1990 Newbridge Microsystems created NewLife Computer Corporation to take over the marketing and sale of the accelerators, and in April of 1990 Newbridge rebranded the Ultramax line to NewLife (April was listed as the first use date for the trademark filing).

1989 UltraMax

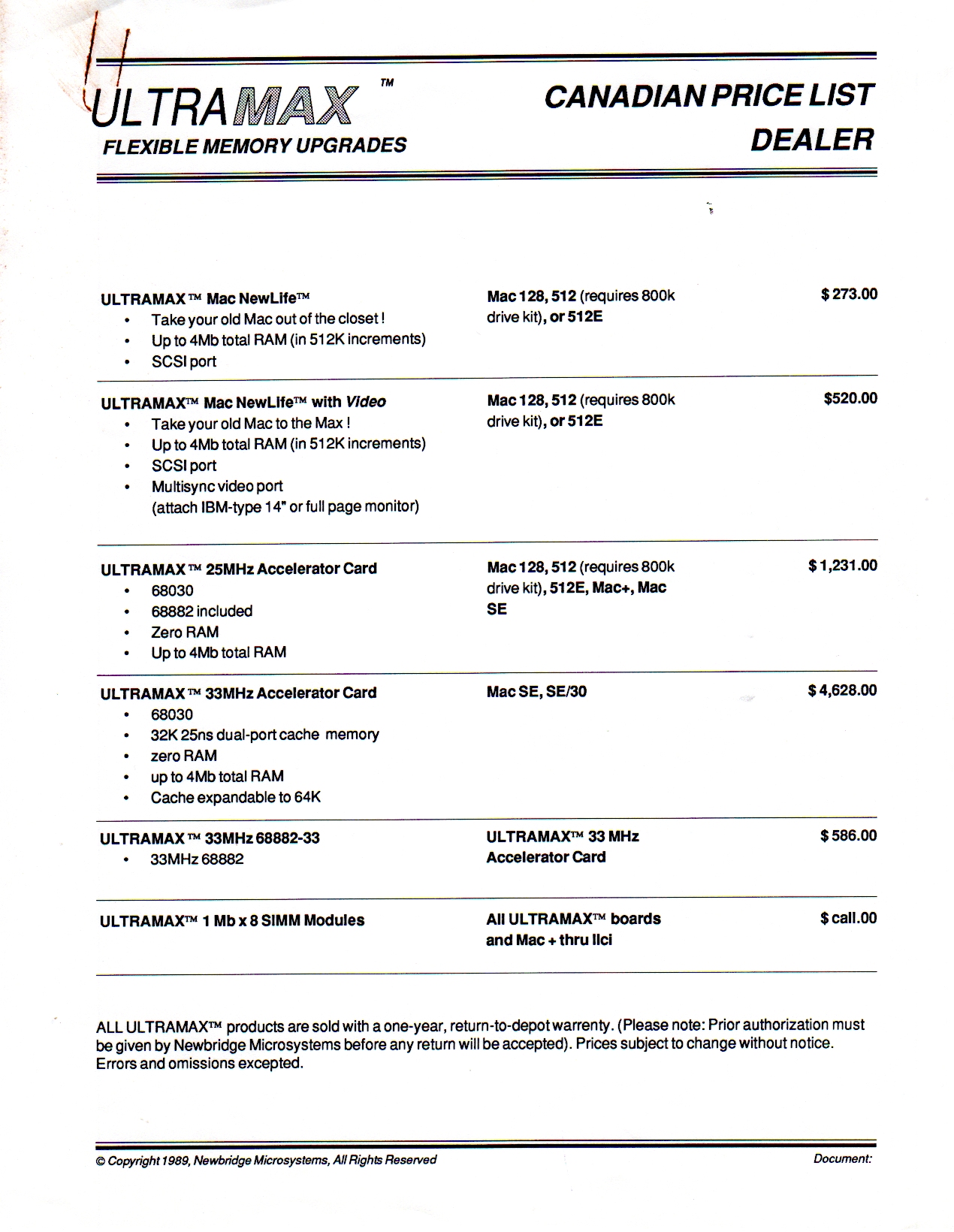

1989 UltraMax PriceList
1989 UltraMax
1990 06 pricelist
1990 NewLife
1993 06 pricelist
1993 NewLife
1993 07 advertisement page 1
1993 Prices P1
1993 07 advertisement page 2
1993 Prices P2
Price Lists from 1989 to 1993 for UltraMax and NewLife

The last two mentions I found for NewLife accelerators are the February 1995 MacWorld article: Making the move to PowerMac: Bye-Bye accelerators, that states NewLife is focusing on inexpensive upgrades, and that Novy Systems has stopped selling accelerators, and then another mention in the July 1997 MacUser article: Never Say Die, Lifesaving measures for your old Mac that metions that NewLife accelerators for the 512Ke, Plus, and SE are still being sold.

I believe there are two main reasons for the death of the 68k accelerator market:

  • The launch of the new PPC hardware
  • The launch of System 7.5.x with it’s new memory manager that was not compatible with the existing enablers. Many of the accelerators still partially work under System 7.5.x and provide CPU acceleration, but the extra memory they provided was not accessible.

In December of 1995, Newbridge Microsystems was taken over by Tundra Semiconductor (website from 1997) led by Adam Chowaniec, I could not find any information to indicate if NewLife Computer Corporation was included in that sale or not.

Licensing Agreement with Novy Technologies?

According to Build Your Own Macintosh and Save a Bundle 1992 NewLife licensed technology from Novy Technologies. According to Lincoln, this is not true. Calmos and later NewLife forward engineered the accelerators based on the 68000 data sheets and the 68030 specs and created their own video ASIC and integrated Virtual to expand the memory.

Addons and Accelerators

NewLife created 68030 accelerators for the Macintosh 128K, 512K, 512Ke, Plus, SE (Original, FDHD and possibly the SE/30), and Classic. They announced, and started development on an accelerator for the LC/Performa 610, but it was never released.

UltraMac (Ultra Mac) memory expansion

Memory expansion module for the 128k and 512k

UltraMac front
UltraMac back

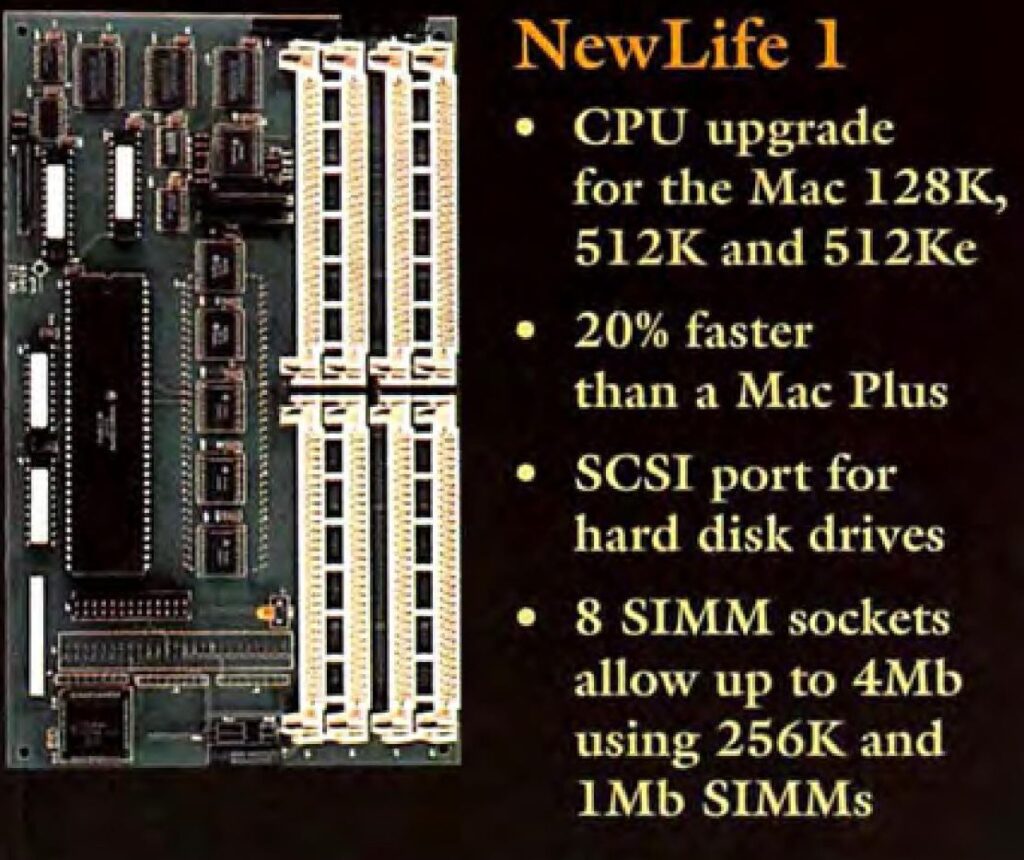

NewLife 1

NewLife 1 / Ultramax

Developed by Calmos Semiconductor (CD101D1-3) and initially released as the Ultramax, then renamed the NewLife 1 (NL-0001-02).

Designed for the Mac 128K*, 512K* and 512Ke, the NewLife 1 is up to 20% than a Mac Plus:

  • a 8MHz MC68HC000 CMOS processor (up to 20% faster than the original Plus CPU),
  • optional SCSI connector,
  • 4 SIM sockets for memory expansion up to 4 Megabytes

*Note: The Mac 128K and 512K required the Apple 800K internal disk drive kit and it’s included 128K ROM upgrade.

Manuals and drivers:

  • 1994 v2.0: driver (DC4.2 image), this may be for the cost reduced 16MHz version.
  • 1990 v1: manual please note this version contains some errors, and you need to read the additional notes and amendment.
  • 1990 v2: manual corrects some of the errors, but still contains the error that the board will operate with 0MB, it will not.
NewLife 1 front
NewLife 1 back
NewLife 1 / Copywrite Calmos Semiconductor CD101D1-3

Advertisements and Reviews:

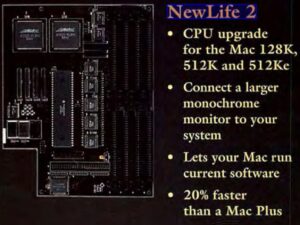

NewLife 2

NewLife 2 / Ultramax with Video

Developed by Calmos Semiconductor (CD601D) and initially released as the Ultramax with Video, then renamed the NewLife 2 (NL-0001-01).

The NewLife 2 has all the features of the NewLife 1 with the addition of a custom Video Controller CMOS ASIC which provides a standard DB-9 TTL PC compatible video connector that can connect to any one of a number of larger monochrome monitors. A control Panel Device (CDEV) allows you to select the monitor and the screen attributes:

ResolutionDPICompatible Monitors
512×32472Standard 9″ Mac screen
640×48072Apple Monochrome, NEC MultiSync II, NEC MultiSync GS, Princeton MAX-15, Sony Multiscan
720×35080NEC MultiSync II, NEC MultiSync GS, Princeton MAX-15, Sony Multiscan
800×56088NEC MultiSync II, Princeton MAX-15, Sony Multiscan
640×86080Samsung Full Page Display MP5671
Display Modes

Manuals and drivers:

  • 1992 v5.2: video driver (DC4.2 image)
  • 1992: manual the content seems similar to the NewLife 1 manual, with the addition of a section on how to install the video adapter.
NewLife 2 SCSI and Video
NewLife 2 / Copywrite Calmos Semiconductor CD601D

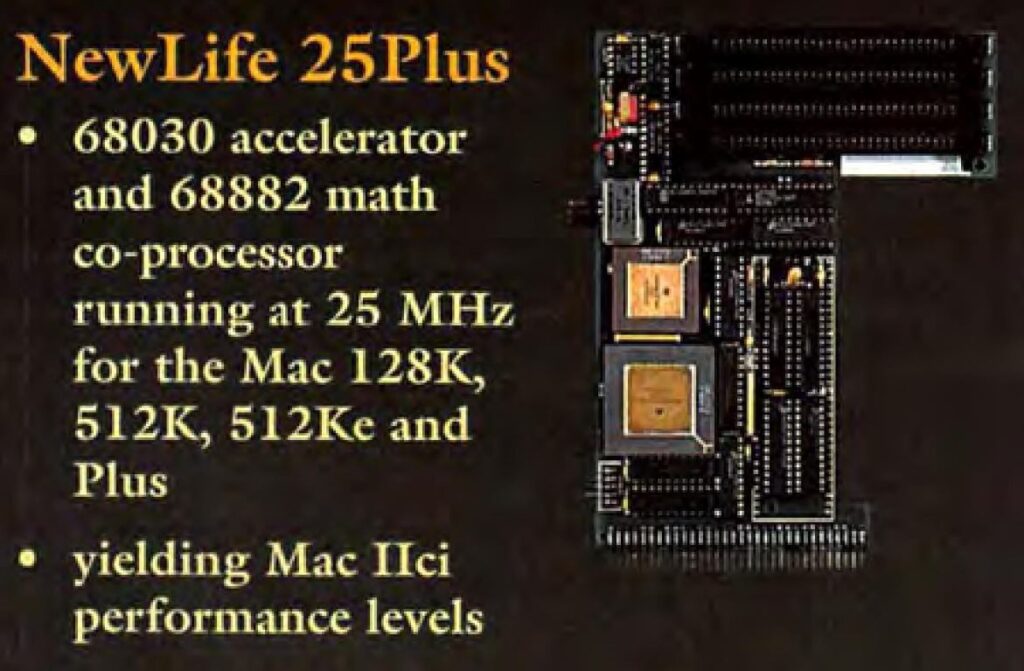

NewLife 25Plus

NewLife 25 (Plus) / UltraMax 25

Developed by Calmos Semiconductor and initially released as the UltraMax 25, and then re-released on July 17th, 1990 as NewLife 25 (NL-0025-01), this accelerator can upgrade a Mac 128K*, 512K*, 512Ke, or the Mac Plus with:

  • a 25MHz 68030 processor (and later there was also as a 20MHz or 16MHz version),
  • optional 68882 FPU,
  • optional SCSI connector (NL-1025-01),
  • 4 SIM sockets for memory expansion up to 4 Megabytes

*Note: The Mac 128K and 512K require the 128K ROM upgrade that is included with the Apple 800K internal disk drive kit.

Manuals and drivers:

  • 1993 v5.42: driver (DC4.2 image)
  • 1990: manual for both the Plus and the original L-shaped SE version that did not fit in older SE cases
  • 1991: product description
  • 1993: manual for the Plus and the updated rectangular SE version

Advertisements and Reviews:

Product Lanuch
Brochures for both the NewLife 25Plus (and 128k, 512k) and the NewLife 25SE

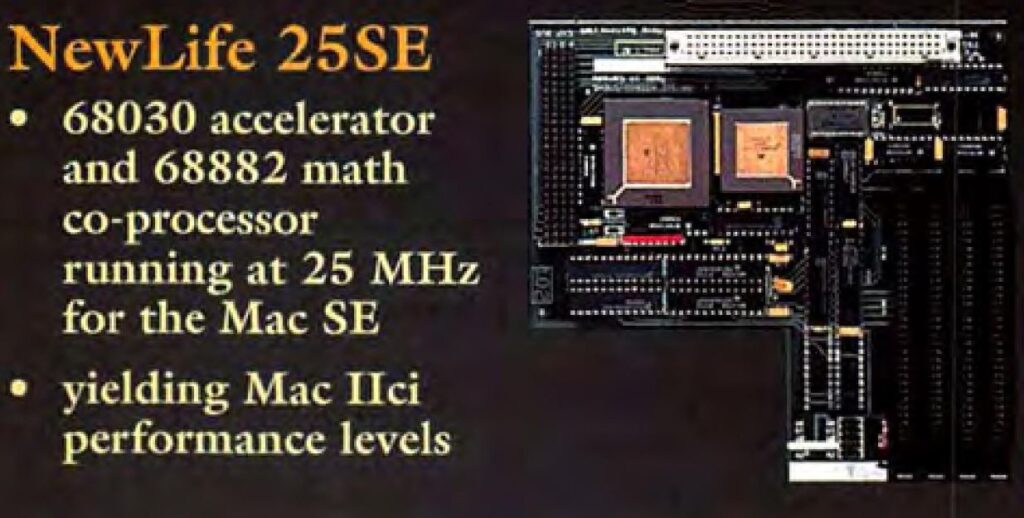

NewLife 25SE

NewLife 25SE / Ultramax 25

Developed by Calmos Semiconductor and initially released as the UltraMax 25, and then re-released on July 17th, 1990 as NewLife 25SE (NL-0025-01)

Installation Notes: The initial release of the accelerator did not fit in the original SE case (apple changed the SE’s case to give it more room, source MacWorld 1992.06 p. 152)

  • a 25MHz 68030 processor (and later there was also as a 20MHz or 16MHz version),
  • optional 68882 FPU,
  • optional DB-9 TLL video connector (NL-2025-02),
  • 4 SIM sockets for memory expansion up to 4 Megabytes (later versions added support for 16MB)

Manuals and drivers:

  • 1993 v5.42: driver (DC4.2 image)
  • 1990: manual for both the Plus and the original L-shaped SE version that did not fit in older SE cases
  • 1991: product description
  • 1993: manual for the Plus and the updated rectangular SE version

Advertisements and Reviews:

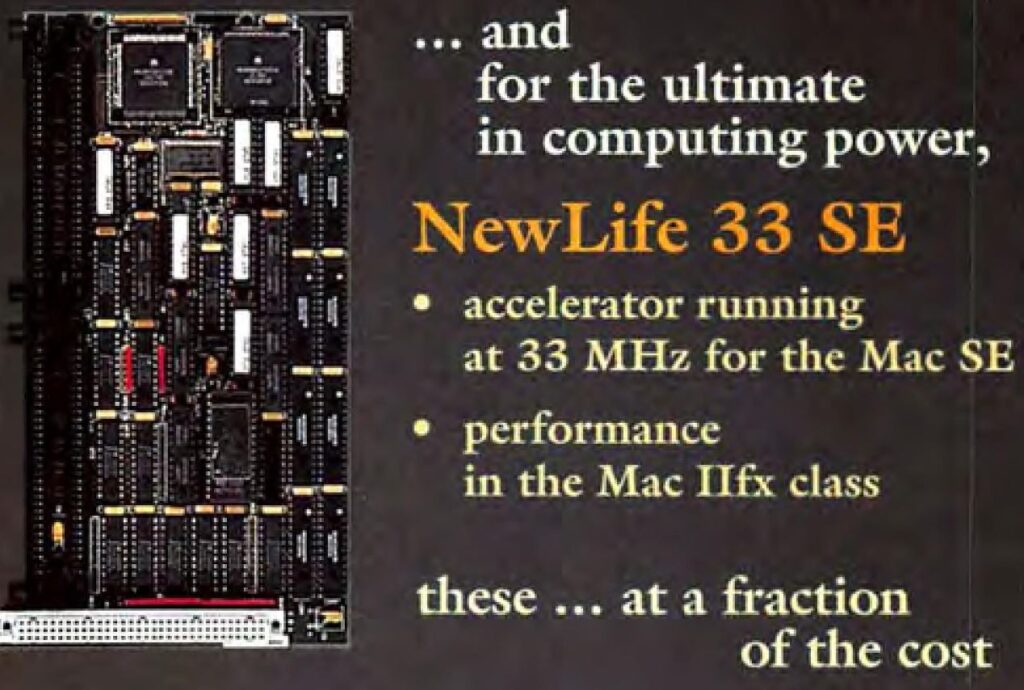

NewLife 33SE (for the SE and SE30)

NewLife 33SE / Ultramax 33

Developed by Calmos Semiconductor and initially released as by Newbridge Microsystems as the UltraMax 33, and then re-released on July 26th, 1990 as NewLife 33SE (NL-0033-01 / CD302B).

Unclear from the documentation if this will work in a SE/30. The brochures mention that the card can automatically configure itself to work with the SE’s 8bit, 16bit and 32bit bus.

  • a 33MHz 68030 processor,
  • optional 68882 FPU,
  • optional DB-9 TLL video connector (NL-2025-02),
  • 256Kb of 25ns static RAM cache and 0 wait states,
  • 4 SIM sockets for memory expansion up to 4 Megabytes

Manuals and drivers:

NewLife 33SE front
NewLife 33SE back

Advertisements and Reviews:

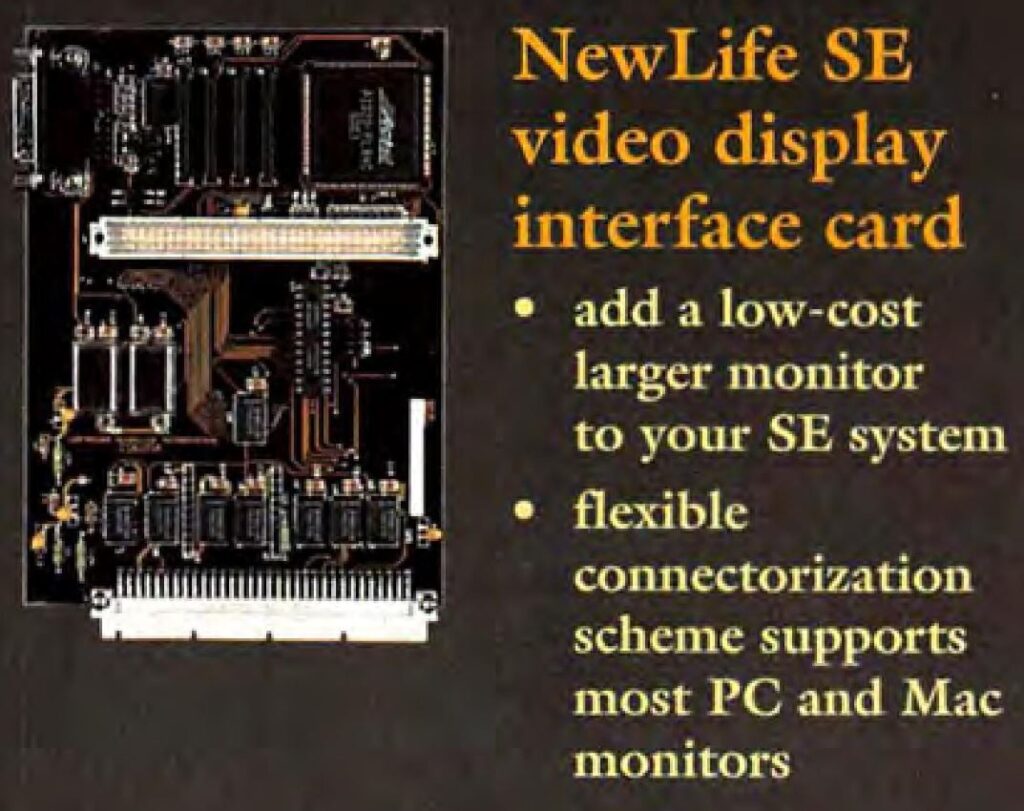

NewLife SE video display card

NewLife SE video display interface card

The card (NL-2025-02) adds large monitor support to your SE system, and supports a wide variety of monochrome monitors including: full page, Hercules graphics, MDA, CGA, EGA, and VGA monochrome compatible monitors.

Plugs directly in to a standard SE bus connector, and is designed to work with the NewLife 25SE and 33SE system upgrades.

Drivers:

  • 1991 video driver (DC4.2 image)
ResolutionDPICompatible Monitors
512×32472Standard 9″ Mac screen
640×48072Apple Monochrome, NEC MultiSync II, NEC MultiSync GS, Princeton MAX-15, Sony Multiscan
720×35080NEC MultiSync II, NEC MultiSync GS, Princeton MAX-15, Sony Multiscan
800×56088NEC MultiSync II, Princeton MAX-15, Sony Multiscan
640×86080Samsung Full Page Display MP5671
Display Modes

Advertisements:

NewLife Accelerator! Classic / NewLife 25CL

Originally named the NewLife 25CL, the accelerator was re-released in 1991 as the NewLife Accelerator! Classic Version with 3 versions:

  • Original NewLife 25CL (NL00025-03)
    • optional 68882 FPU
    • optional SCSI Port (NL-1025-02)
    • optional Video Adapter (NL-2025-03)
    • 4 SIM sockets for memory expansion up to 16 Megabytes
  • a 16MHz version (NL-3016-02 / CD309B)
    • optional 68882 FPU (NL-3016-01)
    • optional Video Adapter (NL-3000-01, and installation kit NL-3000-02)
    • 4 SIM sockets for memory expansion up to 16 Megabytes
  • a 20MHz version (NL-3116-01 / CD309A)
    • included 68882 FPU
    • 4 SIM sockets for memory expansion up to 16 Megabytes

Manuals and drivers:

NewLife Classic 20Mhz front
NewLife Classic 20Mhz back
NewLife Classic 20Mhz version

Advertisements and Reviews:

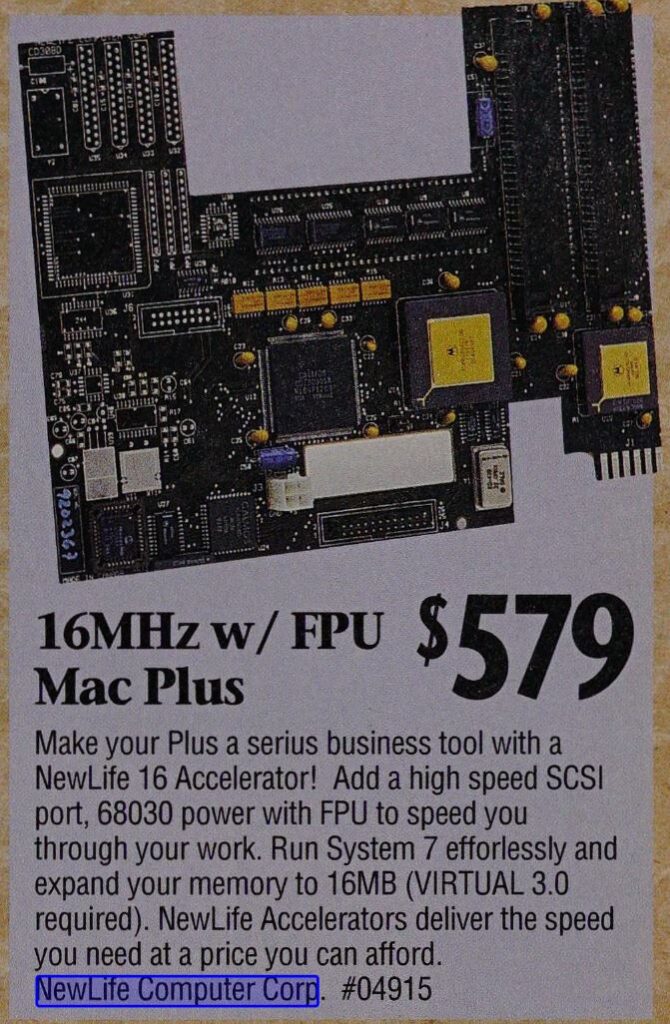

NewLife 16 Accelerator! Plus

Released in early 1992 as a lower cost 16Mhz alternative to the NewLife 25 for the 128K, 512K, 512Ke and the Plus. I assume that like the NewLife 25 the Mac 128K and 512K require the 128K ROM upgrade that is included with the Apple 800K internal disk drive kit.

I could not find much information on this othering than the prices and configurations listed in the 1993 Price List:

  • a 16MHz 68030 processor (NL-0016-03),
  • optional 68882 FPU (NL-0016-01),
  • optional Video (NL-00016-07),
  • 4 SIM sockets for memory expansion up to 16 Megabytes

Advertisements and Drivers:

NewLife Accelerator! SE 16 / SE 20

Released in early 1992 as a lower cost 16Mhz and 20Mhz alternatives to the NewLife 25SE the NewLife Accelerator! SE provides:

  • a 16MHz 68030 processor (NL-0016-04 / CD306C),
  • a 20MHz 68030 processor (CD310D)
  • optional 68882 FPU (NL-0016-02),
  • optional Video (NL-00016-08),
  • 4 SIM sockets for memory expansion up to 16 Megabytes

Manuals and Drivers:

SE 16Mhz front
SE 16Mhz back
SE 20Mhz front
SE 20Mhz back
NewLife Accelerator! SE 16 and 20Mhz

Advertisements and Reviews:

TurboStar 610

Announced, but not released accelerator for Centris 610 systems:

  • a 40MHz 68040 processor,
  • TuboSIMM sockets for memory expansion up to triple the 610
Flyer
Circuit board
Circuit board
TurboStar 40 / Turbo 40

Published in 68k Accelerators, Macintosh 68k and Old Computers and Games

5 Comments

  1. Richard Thomas Richard Thomas

    I ran an UltraMac 68030 (maybe 68020?) accelerator on a 128k based Hackintosh (ref. Computer Shopper magazine) in the early 1990s. I had stability issues with my first board. Being based in Ottawa at the time I was able to contact Lincoln directly and he arranged to swap my troublesome board with a unit from their lab, complete with numerous jumper wires. The board had a Killy clip that fit over the 68000 CPU, NCR5830 SCSI chip, 4MB of ram and video output for a 2-page monochrome white monitor made by Ikegami (21 inch?). I used Mac SE ROMs and updated onboard RAM to 512K with a Dr Dobbs style modification to get the additional address signal for 41256 RAM chips.

    February 1, 2023 Reply
  2. Richard Thomas Richard Thomas

    Sorry, NCR 5380.

    February 1, 2023 Reply
  3. Jeff Walther Jeff Walther

    “4 SIM sockets for memory expansion up to 4 Megabytes ”

    I believe the above is an error with respect to the NewLife 1.

    I installed two of those many many years ago.

    They had 8 SIMM sockets. The Mac still only went to 4 MB of RAM, but the 512K on Fat Macs was used. So, one could populate the sockets with eight 256KB SIMMs to get 2.5 MB, or one could install two 1 MB SIMMs and six 256K SIMMs to get a total of 4 MB.

    In that time frame, 256KB SIMMs were almost free and 1 MB SIMMs were still in the $100/ea realm, so it was quite an economy.

    I haven’t read teh addendums for the manual, but I do remember that the jumper diagram was upside down or some such. Jumpers had to be configured so support whatever SIMM arrangment one had.

    March 10, 2023 Reply
    • olePigeon olePigeon

      It’s possible it supported up to 8MBs with the use of Virtual Compact. There were similar accelerators with 8 SIMM slots. The Mac would only see the first 4MBs, but Virtual Compact would turn the remaining 4MBs into a RAM disk on which it would then use for Virtual Memory (so no loss in speed since it’s storing the VM on a RAM disk.) It’s a cleaver trick to add more RAM without sacrificing speed like traditional VM solutions. 🙂

      March 27, 2023 Reply
      • Jeff Walther Jeff Walther

        Didn’t you need the PMMU of a 68030 for Virtual to work?

        In any case, unless I missed it at the time, Newlife only listed up to 4MB of memory capacity.

        March 30, 2023 Reply
